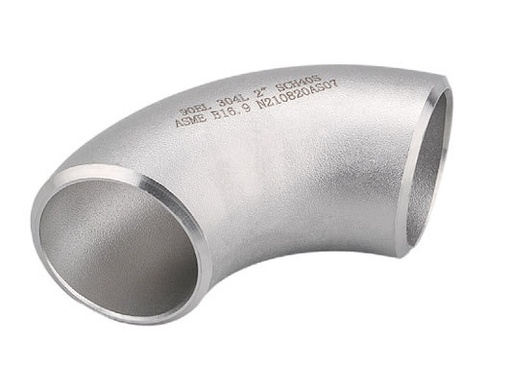

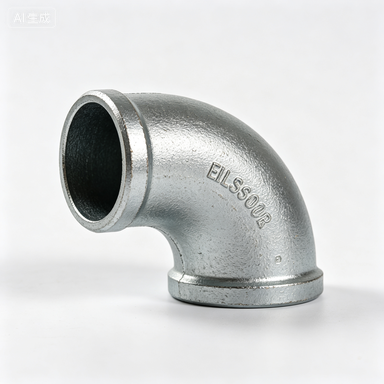

Elbows

We supply premium Steel Elbows, including 90° elbows, 45° elbows and 180° return elbows. Made of carbon steel, stainless steel and alloy steel via seamless hot bending and integral forming. With smooth inner wall, high pressure & temperature resistance, stable structure and perfect welding performance. Widely used for direction changing in petroleum, chemical, natural gas, power, water supply and industrial pipeline systems. Full specifications and international standards are available, custom sizes and export package supported.
Tel：+86 18751558679
WhatsApp：+86 18751558679
Email：ERIC@XHXSTEEL.COM
INQUIRY >
CONTACT >

Product Details

Product Overview

We specialize in supplying high-quality Steel Pipe Fittings Elbows, a core direction-changing fitting for industrial pipeline systems, mainly including 90° elbows, 45° elbows and 180° return elbows. Manufactured from premium carbon steel, stainless steel and alloy steel through seamless hot bending, cold bending, integral forging and precision machining processes, our elbows feature uniform wall thickness, smooth inner and outer surfaces, high structural strength, excellent pressure resistance, high temperature resistance and reliable welding performance. Designed to realize smooth direction transition of pipelines, reduce medium flow resistance and pressure loss, they effectively avoid pipeline damage caused by sudden direction changes, ensuring safe, stable and efficient operation of the entire piping system. Strictly produced in accordance with international standards and strict quality control, our steel elbows are widely recognized in global industrial engineering projects for their stable quality and long service life.

Available Material Grades

Carbon Steel: 20#, A105, A106B, Q235B, Q345B (Q355B), 16Mn    Stainless Steel: 304, 304L, 316, 316L, 321, 310S    Alloy Steel: 15CrMo, 12Cr1MoV, 20CrMnTi, P91    Custom special materials and corrosion-resistant, high-temperature resistant grades are available upon request to meet the needs of harsh working conditions (high pressure, high temperature, strong corrosion) in different industries.

Main Product Types & Specifications

Steel Pipe Fittings Elbows

  • Type: 90° Elbow (most commonly used for right-angle direction change), 45° Elbow (for gentle direction transition), 180° Return Elbow (for pipeline U-turn), seamless elbows, welded elbows, forged elbows, long-radius elbows, short-radius elbows
  • Specifications: Nominal Diameter (DN): DN15 – DN1200; Wall Thickness: Sch10, Sch20, Sch40, Sch80, Sch160, XXS; support custom caliber, wall thickness and angle to match different pipeline layouts
  • Connection Mode: Butt weld (for large-caliber elbows), socket weld, threaded connection (for small-caliber elbows), easy to install and connect with various steel pipelines
  • Execution Standard: ASME B16.9, ASME B16.11, GB/T 12459, DIN, EN, JIS, ensuring compatibility with international standard steel pipelines and interchangeability with other fittings.

Surface & Heat Treatment

  • Surface Finish: Black hot-rolled finish, sand blasting (rust removal), anti-rust oil coating, hot-dip galvanized, electro-galvanized, painted finish. The smooth inner wall ensures unobstructed medium flow, reduces scaling and avoids pressure loss.
  • Heat Treatment: Annealing, normalizing, tempering, quenching (custom heat treatment process available to adjust the hardness, toughness and structural stability of elbows, improving their pressure resistance and service life in extreme working environments).

Product Advantages

  • Smooth Direction Transition: Scientific angle design and smooth inner wall, effectively reducing medium flow resistance and pressure loss, avoiding eddy current and pipeline wear.
  • High Strength & Durability: Integral seamless forming or forging process, uniform wall thickness, no welding defects, high structural strength, not easy to deform, crack or leak under high pressure and high temperature.
  • Excellent Corrosion & Wear Resistance: High-quality steel materials and professional surface treatment, strong resistance to corrosion, oxidation and wear, suitable for various corrosive media (acid, alkali, salt, natural gas) and harsh industrial environments.
  • Precise Dimension & Good Compatibility: Strict dimensional tolerance control, accurate caliber and angle, easy to match and weld with different specifications of steel pipelines, strong compatibility and interchangeability.
  • Customizable Service: Complete specifications in stock, support custom angle, caliber, wall thickness, material and surface treatment, fully meeting the diverse layout needs of different pipeline projects.

Application Fields

Widely used in petroleum, chemical industry, natural gas, power plant, thermal power, water supply and drainage, municipal engineering, shipbuilding, metallurgy, mining, pharmaceutical, food and other industries. It is an essential direction-changing fitting for various steel pipeline systems, such as oil and gas transmission pipelines, chemical reaction pipelines, water supply and drainage pipelines, thermal pipelines, industrial process pipelines and fire-fighting pipelines.


Packaging and Shipping

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

容器 1@1x

· FAQ

Your questions may be answered here

A：

We produce hot/cold rolled coils, galvanized/color coated sheets, medium/heavy plates, deformed bars, wire rods, H beams, angles, channels, round bars, seamless/welded pipes, square/rectangular tubes, and custom special profiles.

A：

We support customized production according to GB, ASTM, EN, JIS, AS, GOST, and other international standards to meet diverse project requirements.

A：

We are certified with ISO9001, ISO14001, CE, API 5L/5CT, ASTM, and EN, with a full-process quality management system.

A：

Our products are widely used in construction, machinery manufacturing, steel structures, energy transmission, auto parts, hardware fabrication, shipbuilding, and infrastructure projects.

A：

Yes. We offer flexible production solutions and support small-quantity and sample orders. Please contact us for details.

A：

Standard products typically take 15-30 days. Custom products depend on specifications and quantity. We are committed to on-time delivery.

A：

Our products have been exported to more than 60 countries and regions across Southeast Asia, the Middle East, Europe, Africa, South America, and Oceania.

A：

You can reach us via the contact form on our website, email, or phone. Our sales team will respond within 24 hours.

Certificate Qualification

Hongke holds ISO9001, ISO14001, CE, API 5L/5CT, ASTM, EN and other international certifications. With full-process quality control and physical & chemical testing, our products consistently meet global standards, enabling smooth access to EU, North America, Middle East and other major markets.
